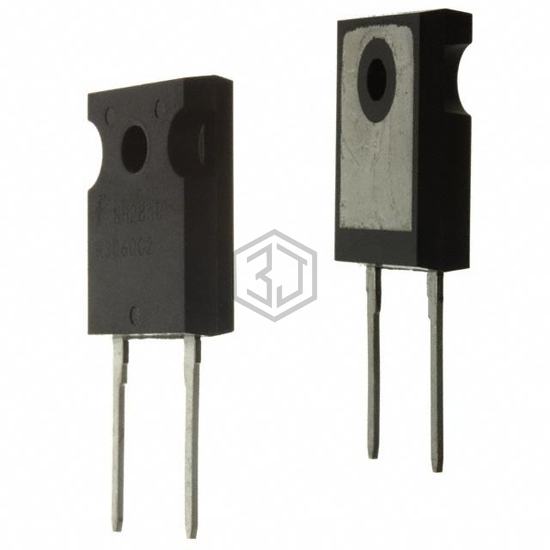

FFSH3065B-F085
650V 30A SIC SBD GEN1.5
FFSH3065B-F085 is a Diodes - Rectifiers - Single manufactured by onsemi. 650V 30A SIC SBD GEN1.5. Key specifications: mounting type Through Hole, package / case TO-247-2.
In Stock: 1,098
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) | 37A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 30 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 40 µA @ 650 V |
| Capacitance @ Vr, F | 1260pF @ 1V, 100kHz |
| Mounting Type | Through Hole |
| Package / Case | TO-247-2 |
| Supplier Device Package | TO-247-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
Frequently Asked Questions
FFSH3065B-F085 is a Diodes - Rectifiers - Single manufactured by onsemi. 650V 30A SIC SBD GEN1.5
The mounting type of FFSH3065B-F085 is Through Hole.
The package type of FFSH3065B-F085 is TO-247-2.
