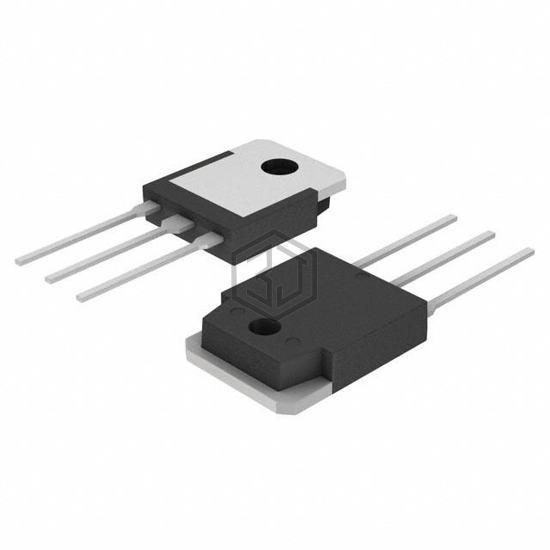

FFA40UP35STU
DIODE GEN PURP 350V 40A TO3PN
FFA40UP35STU is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE GEN PURP 350V 40A TO3PN. Key specifications: mounting type Through Hole, package / case TO-3P-3, SC-65-3.
In Stock: 4
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 350 V |
| Current - Average Rectified (Io) | 40A |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 40 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 55 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 350 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3PN |
| Operating Temperature - Junction | -65°C ~ 150°C |
Frequently Asked Questions
FFA40UP35STU is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE GEN PURP 350V 40A TO3PN
The mounting type of FFA40UP35STU is Through Hole.
The package type of FFA40UP35STU is TO-3P-3, SC-65-3.
Yes, FFA40UP35STU is listed as Obsolete. Consider requesting a quote for alternative parts.
