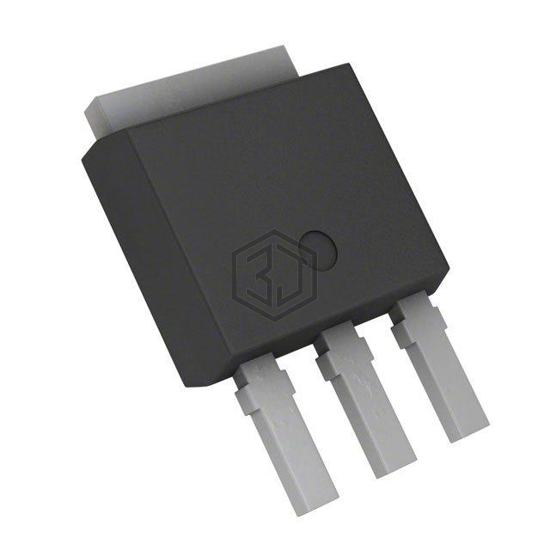

MOSFET N-CH 250V 4.4A IPAK
FDU6N25 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 250V 4.4A IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Stub Leads, IPak.
In Stock: 3,997
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V |
| Current - Continuous Drain (Id) @ 25°C | 4.4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.1Ohm @ 2.2A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 250 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 50W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | I-PAK |
| Package / Case | TO-251-3 Stub Leads, IPak |
Submit your RFQ for FDU6N25 and get a quote within 24 hours.
