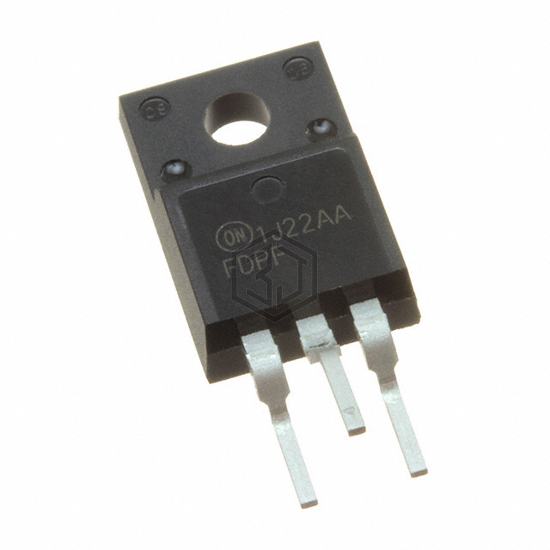

MOSFET N-CHANNEL 250V TO220F
FDPF33N25TRDTU is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CHANNEL 250V TO220F. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, Formed Leads.
In Stock: 448
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V |
| Current - Continuous Drain (Id) @ 25°C | 33A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 94mOhm @ 16.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 48 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2135 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 37W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220F (LG-Formed) |
| Package / Case | TO-220-3 Full Pack, Formed Leads |
Submit your RFQ for FDPF33N25TRDTU and get a quote within 24 hours.
