MOSFET N-CH 120V 20A 8DLCOOL88

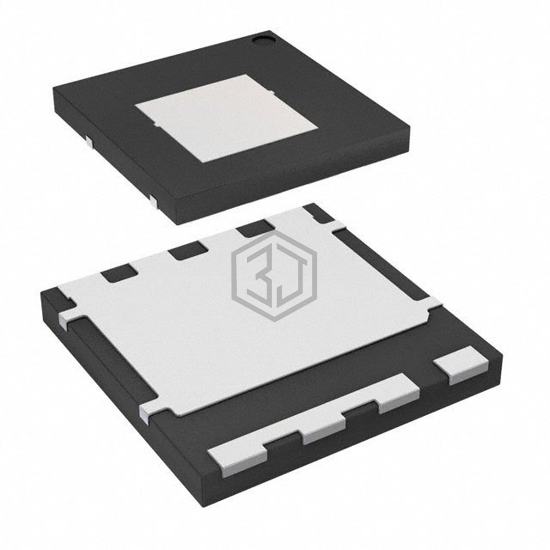

FDMT800120DC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 120V 20A 8DLCOOL88. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.
In Stock: 5,875
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 120 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta), 129A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 4.14mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 107 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7850 pF @ 60 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.2W (Ta), 156W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-Dual Cool™88 |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for FDMT800120DC and get a quote within 24 hours.
