POWER FIELD-EFFECT TRANSISTOR, 3

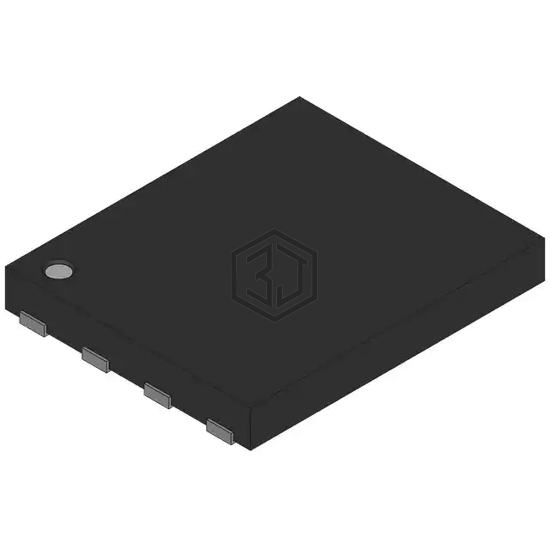

FDMS3006SDC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. POWER FIELD-EFFECT TRANSISTOR, 3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 34A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.9mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 80 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5725 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.3W (Ta), 89W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | Dual Cool™56 |
| Package / Case | 8-PowerTDFN |
Submit your RFQ for FDMS3006SDC and get a quote within 24 hours.
