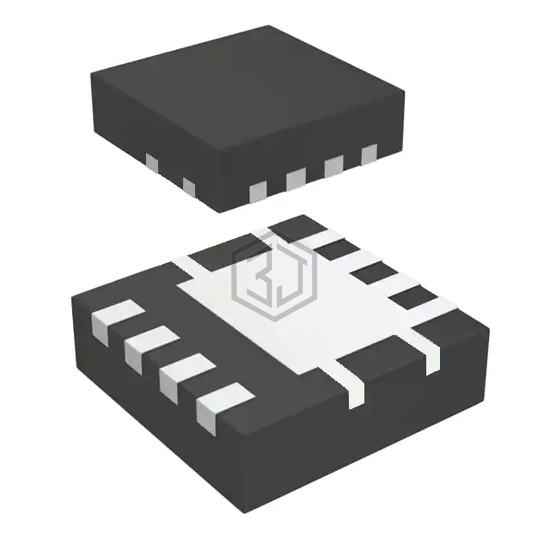

MOSFET N-CH 30V 15A 8MLP
FDMC8854 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 15A 8MLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.
In Stock: 371
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5.7mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 57 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3405 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta), 41W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MLP (3.3x3.3) |
| Package / Case | 8-PowerWDFN |
Submit your RFQ for FDMC8854 and get a quote within 24 hours.
