MOSFET N-CH 25V 16.5A/40A PWR33

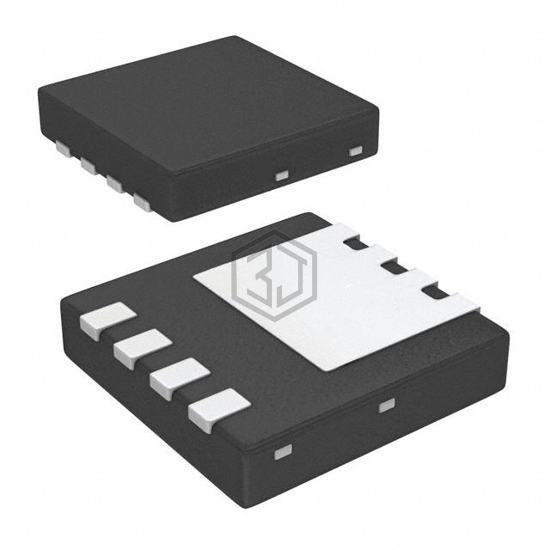

FDMC8588 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 25V 16.5A/40A PWR33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.
In Stock: 9,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 16.5A (Ta), 40A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 17A, 10V |
| Vgs(th) (Max) @ Id | 1.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 1228 pF @ 13 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.4W (Ta), 26W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | Power33 |
| Package / Case | 8-PowerTDFN |
Submit your RFQ for FDMC8588 and get a quote within 24 hours.
