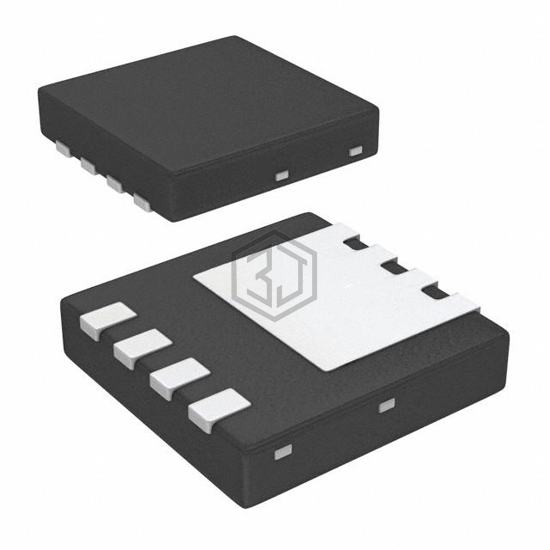

MOSFET N-CH 25V 124A POWER33
FDMC2D8N025S is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 25V 124A POWER33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.
In Stock: 1,146
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 124A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.9mOhm @ 28A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 63 nC @ 10 V |
| Vgs (Max) | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 4615 pF @ 13 V |
| FET Feature | - |
| Power Dissipation (Max) | 47W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | Power33 |
| Package / Case | 8-PowerWDFN |
Submit your RFQ for FDMC2D8N025S and get a quote within 24 hours.
