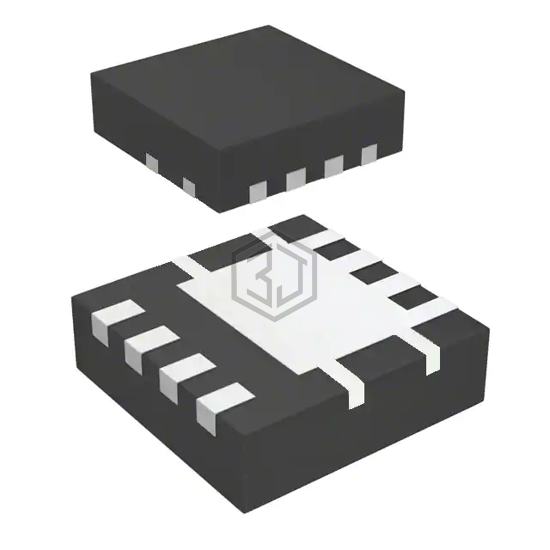

MOSFET N-CH 200V 2.2A/9.5A 8MLP
FDMC2610 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 200V 2.2A/9.5A 8MLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.
In Stock: 1,589
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 2.2A (Ta), 9.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 200mOhm @ 2.2A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 960 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.1W (Ta), 42W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MLP (3.3x3.3) |
| Package / Case | 8-PowerWDFN |
Submit your RFQ for FDMC2610 and get a quote within 24 hours.
