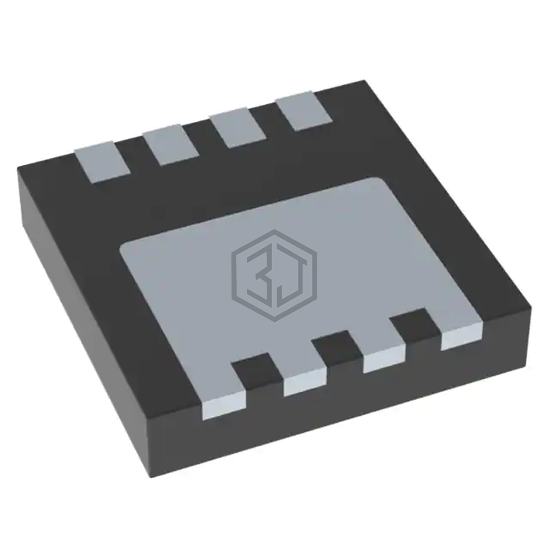

MOSFET N-CH 80V 64A 8PQFN
FDMC007N08LCDC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 80V 64A 8PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.
In Stock: 8,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 64A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 6.8mOhm @ 22A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 130µA |
| Gate Charge (Qg) (Max) @ Vgs | 44 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3070 pF @ 40 V |
| FET Feature | - |
| Power Dissipation (Max) | 57W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PQFN (3.3x3.3) |
| Package / Case | 8-PowerWDFN |
Submit your RFQ for FDMC007N08LCDC and get a quote within 24 hours.
