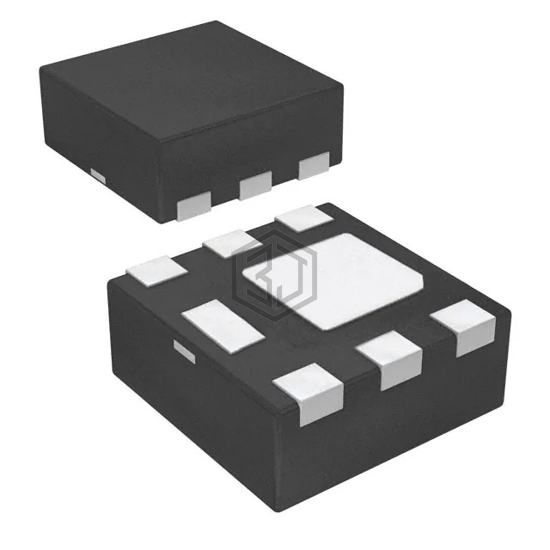

MOSFET N-CH 100V 2.2A 6MICROFET
FDMA86108LZ is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 2.2A 6MICROFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.
In Stock: 17,845
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 2.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 243mOhm @ 2.2A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 163 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.4W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-MicroFET (2x2) |
| Package / Case | 6-WDFN Exposed Pad |
Submit your RFQ for FDMA86108LZ and get a quote within 24 hours.
