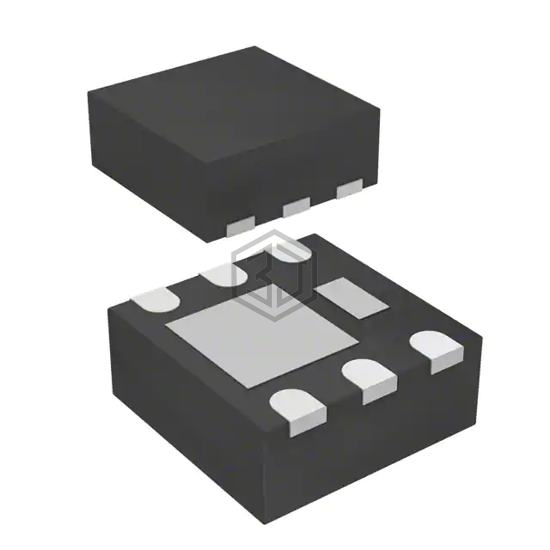

MOSFET N-CH 20V 3.7A 6MICROFET
FDFMA2N028Z is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 20V 3.7A 6MICROFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VDFN Exposed Pad.
In Stock: 6,465
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 3.7A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 68mOhm @ 3.7A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 455 pF @ 10 V |
| FET Feature | Schottky Diode (Isolated) |
| Power Dissipation (Max) | 1.4W (Tj) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-MicroFET (2x2) |
| Package / Case | 6-VDFN Exposed Pad |
Submit your RFQ for FDFMA2N028Z and get a quote within 24 hours.
