MOSFET N-CH 100V 6.8A TO252

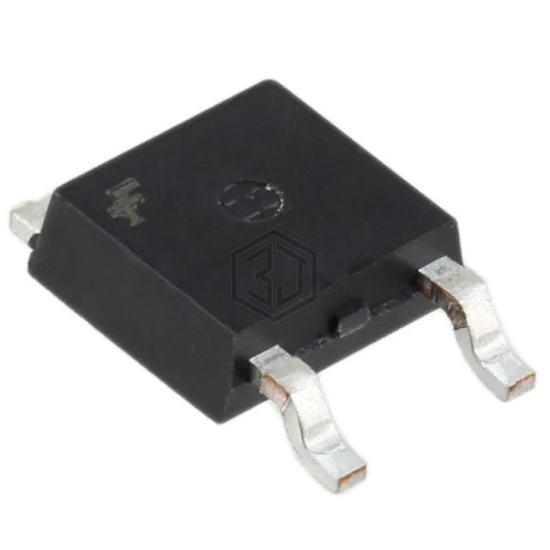

FDD1600N10ALZ is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 6.8A TO252. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.
In Stock: 7,303
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 6.8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Rds On (Max) @ Id, Vgs | 160mOhm @ 3.4A, 10V |
| Vgs(th) (Max) @ Id | 2.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.61 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 225 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 14.9W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252AA |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
Submit your RFQ for FDD1600N10ALZ and get a quote within 24 hours.
