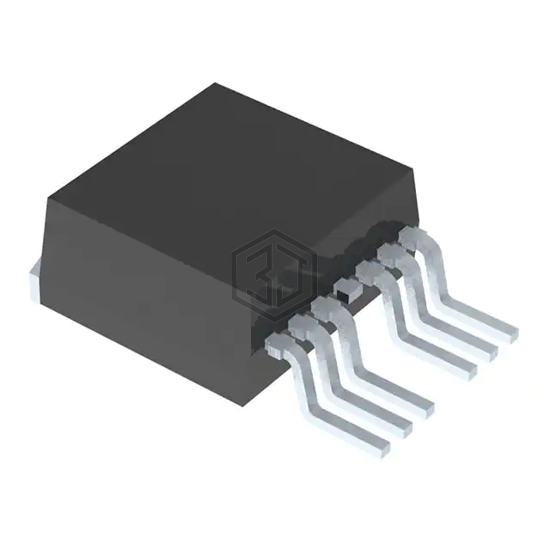

MOSFET N-CH 150V 130A TO263-7
FDB0630N1507L is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 150V 130A TO263-7. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab).
In Stock: 716
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 130A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 6.4mOhm @ 18A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 135 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 9895 pF @ 75 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.8W (Ta), 300W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263-7 |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) |
Submit your RFQ for FDB0630N1507L and get a quote within 24 hours.
