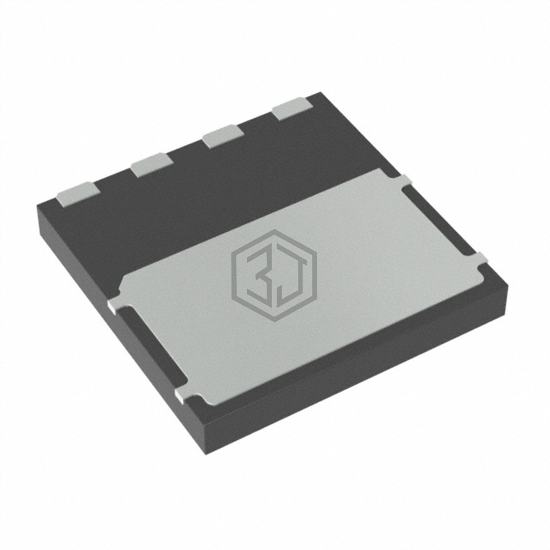

MOSFET N-CH 650V 24A 4PQFN
FCMT125N65S3 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 650V 24A 4PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-PowerTSFN.
In Stock: 320
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 24A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 125mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 590µA |
| Gate Charge (Qg) (Max) @ Vgs | 49 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1920 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 181W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 4-PQFN (8x8) |
| Package / Case | 4-PowerTSFN |
Submit your RFQ for FCMT125N65S3 and get a quote within 24 hours.
