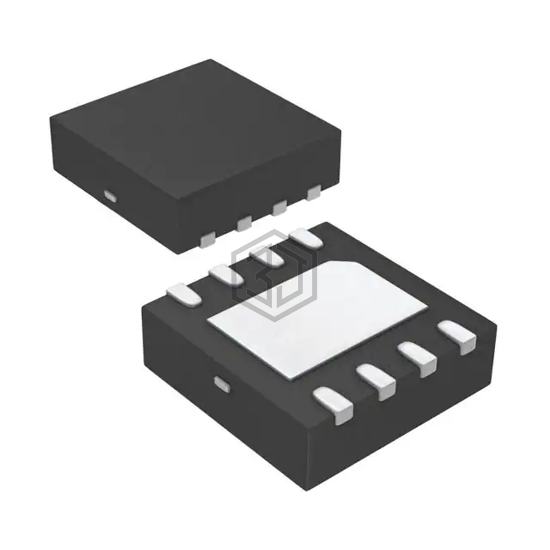

IC GATE DRVR LOW-SIDE 8MLP
FAN3225TMPX is a PMIC - Gate Drivers manufactured by onsemi. IC GATE DRVR LOW-SIDE 8MLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case 8-WDFN Exposed Pad.
In Stock: 2,073
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 12ns, 9ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-MLP (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FAN3225TMX | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 100% | View |
| FAN3223CMPX | Fairchild Semiconductor | FULL BRIDGE BASED PERIPHERAL DRI | 100% | View |
| UCC27524ADGNR | Texas Instruments | IC GATE DRVR LOW-SIDE 8MSOP | 91% | View |
| UCC27525DSDT | Texas Instruments | IC GATE DRVR LOW-SIDE 8SON | 91% | View |
| NCP81071ADR2G | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 90% | View |
| 2EDL8012GXUMA1 | Infineon Technologies | INT. POWERSTAGE/DRIVER PG-VDSON- | 88% | View |
Submit your RFQ for FAN3225TMPX and get a quote within 24 hours.
