FILTER LC(PI) 70NH/11.5PF SMD

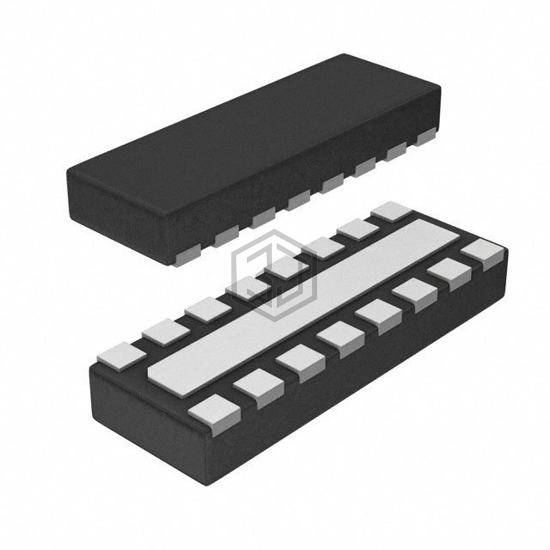

EMI9408MUTAG is a EMI/RFI Filters (LC, RC Networks) manufactured by onsemi. FILTER LC(PI) 70NH/11.5PF SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-UFDFN Exposed Pad, current 15 mA.
In Stock: 7,750
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 5th |
| Technology | LC (Pi) |
| Number of Channels | 8 |
| Center / Cutoff Frequency | 345MHz (Cutoff) |
| Attenuation Value | 35dB @ 800MHz ~ 2.7GHz |
| Resistance - Channel (Ohms) | 45 |
| Current | 15 mA |
| Values | L = 70nH (Total), C = 11.5pF (Total) |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFDFN Exposed Pad |
| Size / Dimension | 0.130" L x 0.053" W (3.30mm x 1.35mm) |
| Height | 0.024" (0.60mm) |
Submit your RFQ for EMI9408MUTAG and get a quote within 24 hours.
