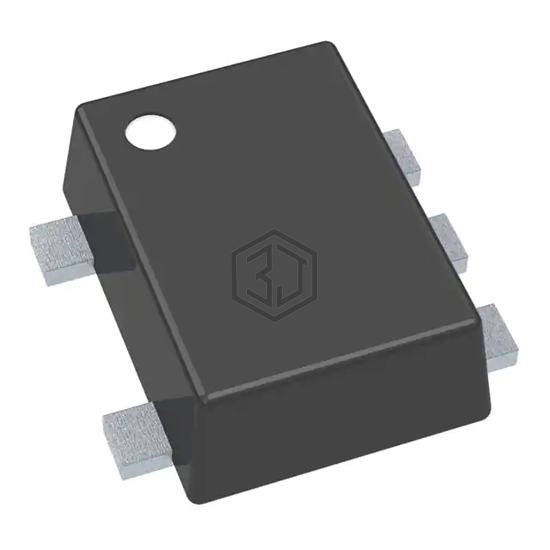

TRANS PREBIAS NPN/PNP SOT553
EMC5DXV5T1 is a Transistors - Bipolar (BJT) - Arrays, Pre-Biased manufactured by onsemi. TRANS PREBIAS NPN/PNP SOT553. Key specifications: mounting type Surface Mount, package / case SOT-553, current - collector (ic) (max) 100mA, power - max 500mW.
In Stock: 131,530
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) | 47kOhms, 4.7kOhms |
| Resistor - Emitter Base (R2) | 47kOhms, 10kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V / 20 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | - |
| Power - Max | 500mW |
| Mounting Type | Surface Mount |
| Package / Case | SOT-553 |
| Supplier Device Package | SOT-553 |
Submit your RFQ for EMC5DXV5T1 and get a quote within 24 hours.
