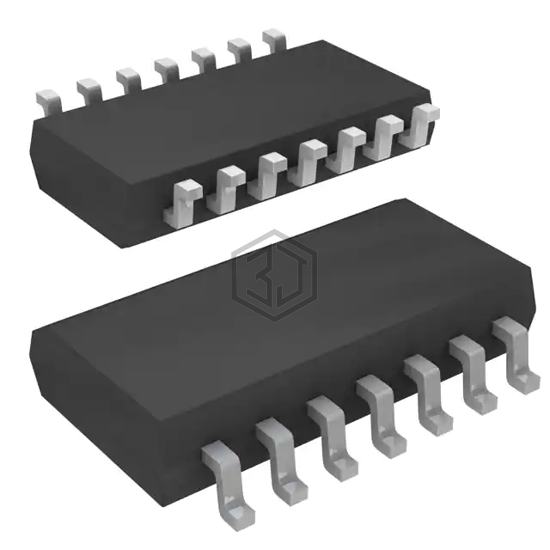

IC INVERT SCHMITT 6CH 1-IN 14SOP
DM74ALS14SJX is a Logic - Gates and Inverters manufactured by onsemi. IC INVERT SCHMITT 6CH 1-IN 14SOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, package / case 14-SOIC (0.209", 5.30mm Width).
In Stock: 3,803
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - |
| Current - Output High, Low | 400µA, 8mA |
| Logic Level - Low | 0.75V ~ 0.85V |
| Logic Level - High | 1.85V ~ 2V |
| Max Propagation Delay @ V, Max CL | 12ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOP |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
DM74ALS14SJX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74ALS04BD | Texas Instruments | IC INVERTER 6CH 1-INP 14SOIC | 98% | View |
| SNJ54LS04W | Texas Instruments | IC INVERTER 6CH 1-INP 14CFP | 95% | View |
| SNJ54LS04FK | Texas Instruments | IC INVERTER 6CH 1-INP 20LCCC | 95% | View |
| M38510/00105BDA | Texas Instruments | IC INVERTER 6CH 1-INP 14CFP | 89% | View |
| SN74LS14DBR | Texas Instruments | IC INV SCHMITT 6CH 1-IN 14SSOP | 86% | View |
| SN74LS14DR | Texas Instruments | IC INV SCHMITT 6CH 1-IN 14SOIC | 86% | View |
Submit your RFQ for DM74ALS14SJX and get a quote within 24 hours.
