IC GATE NOR 4CH 2-INP 14SOP

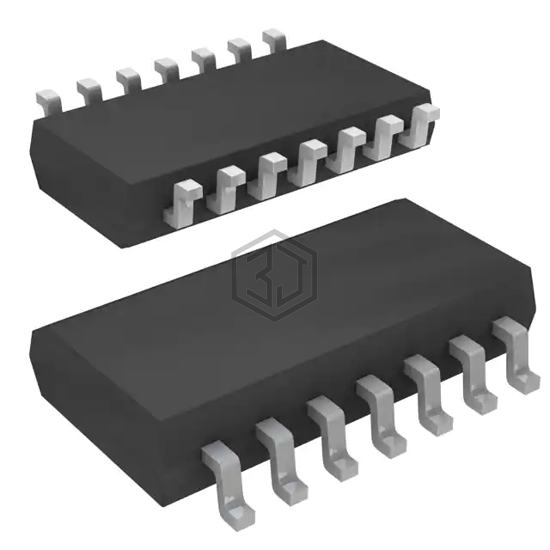

DM74ALS02SJ is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NOR 4CH 2-INP 14SOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, package / case 14-SOIC (0.209", 5.30mm Width).
In Stock: 5,667
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NOR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - |
| Current - Output High, Low | 400µA, 8mA |
| Logic Level - Low | 0.8V |
| Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 12ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOP |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
DM74ALS02SJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74ALS02ADR | Texas Instruments | IC GATE NOR 4CH 2-INP 14SOIC | 100% | View |
| SN74ALS02AD | Texas Instruments | IC GATE NOR 4CH 2-INP 14SOIC | 100% | View |
| SN74LS02NSR | Texas Instruments | IC GATE NOR 4CH 2-INP 14SOP | 96% | View |
| SN74LS02D | Texas Instruments | IC GATE NOR 4CH 2-INP 14SOIC | 96% | View |
| DM74LS02SJ | Fairchild Semiconductor | NOR GATE, LS SERIES TTL | 93% | View |
| SN74ALS27ADR | Texas Instruments | IC GATE NOR 3CH 3-INP 14SOIC | 91% | View |
Submit your RFQ for DM74ALS02SJ and get a quote within 24 hours.
