FILTER RC(PI) 100 OHM/30PF SMD

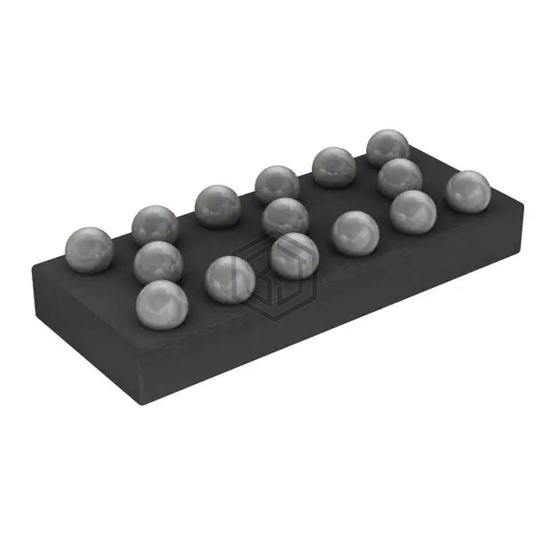

CSPEMI306AG is a EMI/RFI Filters (LC, RC Networks) manufactured by onsemi. FILTER RC(PI) 100 OHM/30PF SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 15-UFBGA, WLCSP, size / dimension 0.117" L x 0.052" W (2.96mm x 1.33mm).
In Stock: 8,150
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 6 |
| Center / Cutoff Frequency | 58MHz (Cutoff) |
| Attenuation Value | 30dB @ 800MHz ~ 2.7GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | - |
| Values | R = 100Ohms, C = 30pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 15-UFBGA, WLCSP |
| Size / Dimension | 0.117" L x 0.052" W (2.96mm x 1.33mm) |
| Height | 0.026" (0.65mm) |
Submit your RFQ for CSPEMI306AG and get a quote within 24 hours.
