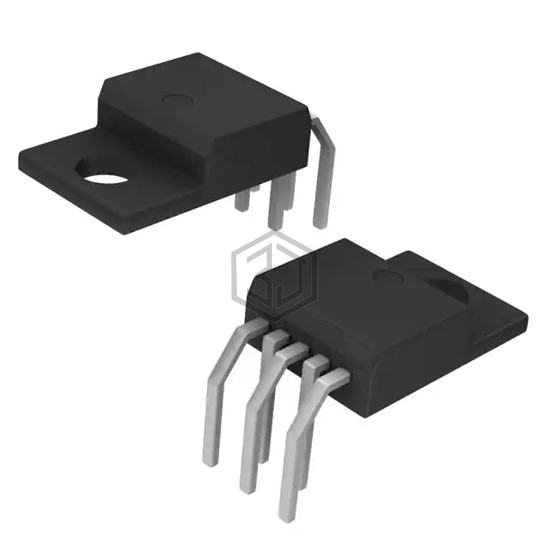

IC REG LIN 12V/5V TO220-5
CS8156YTHA5 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LIN 12V/5V TO220-5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-220-5 Formed Leads, current - supply (max) 250 mA.
In Stock: 8,915
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 12V, 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1V @ 750mA, 0.6V @ 100mA |
| Current - Output | 750mA, 100mA |
| Current - Quiescent (Iq) | 125 mA |
| Current - Supply (Max) | 250 mA |
| PSRR | 70dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 Formed Leads |
| Supplier Device Package | TO-220-5 Horizontal |
CS8156YTHA5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CS8156YTVA5G | onsemi | IC REG LIN 12V/5V TO220-5 | 100% | View |
| CS8156YTHA5G | onsemi | IC REG LIN 12V/5V TO220-5 | 100% | View |
| CS8156YTVA5 | onsemi | IC REG LIN 12V/5V TO220-5 | 100% | View |
| CS8156YT5G | onsemi | IC REG LINEAR 12V/5V TO220-5 | 100% | View |
| CS8156YT5 | onsemi | IC REG LINEAR 12V/5V TO220-5 | 100% | View |
| LX8940IP | Microsemi Corporation | IC REG LINEAR 5V 1A TO220 POWER | 56% | View |
Submit your RFQ for CS8156YTHA5 and get a quote within 24 hours.
