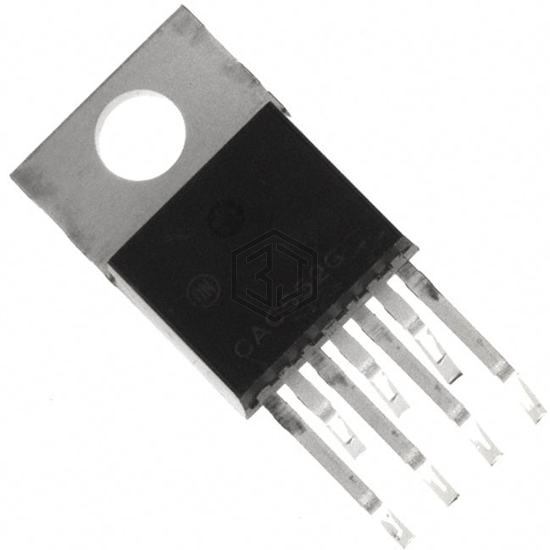

IC REG LINEAR 5V 100MA TO220-7
CS8151YTHA7G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 5V 100MA TO220-7. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-220-7 Formed Leads, current - output 100mA.
In Stock: 1,250
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | - |
| PSRR | 75dB (120Hz) |
| Control Features | Reset, Wake-Up, Watchdog |
| Protection Features | Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-7 Formed Leads |
| Supplier Device Package | TO-220-7 |
