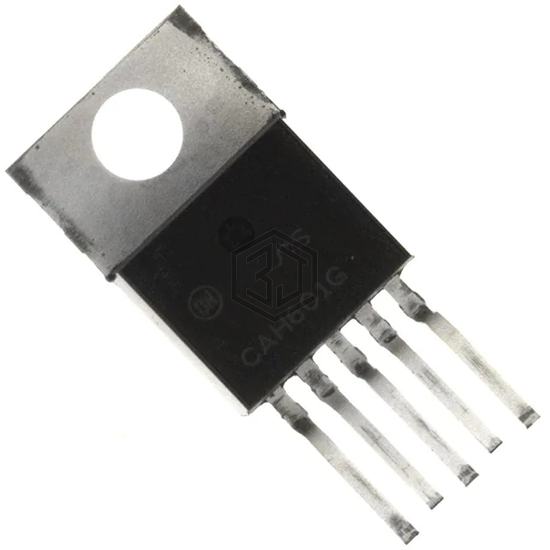

IC REG LIN 5V 300MA TO220-5
CS8120YTVA5 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LIN 5V 300MA TO220-5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-220-5 Formed Leads, current - supply (max) 15 mA.
In Stock: 5,050
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.5V @ 200mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 650 µA |
| Current - Supply (Max) | 15 mA |
| PSRR | 70dB (120Hz) |
| Control Features | Enable, Reset |
| Protection Features | Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 Formed Leads |
| Supplier Device Package | TO-220-5 Vertical |
CS8120YTVA5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MIC29201-50BT | Micrel Inc. | IC REG LINEAR 5V 400MA TO220-5 | 87% | View |
| MIC2937A-5.0WT | Microchip Technology | IC REG LINEAR 5V 750MA TO220-3 | 80% | View |
| LM2940T-5.0/NOPB | Texas Instruments | IC REG LINEAR 5V 1A TO220-3 | 72% | View |
| MIC29371-3.3WT | Microchip Technology | IC REG LINEAR 3.3V 750MA TO220-5 | 66% | View |
| LM2940T-9.0/NOPB | Texas Instruments | IC REG LINEAR 9V 1A TO220-3 | 56% | View |
| LM2940T-12.0/NOPB | Texas Instruments | IC REG LINEAR 12V 1A TO220-3 | 52% | View |
Submit your RFQ for CS8120YTVA5 and get a quote within 24 hours.
