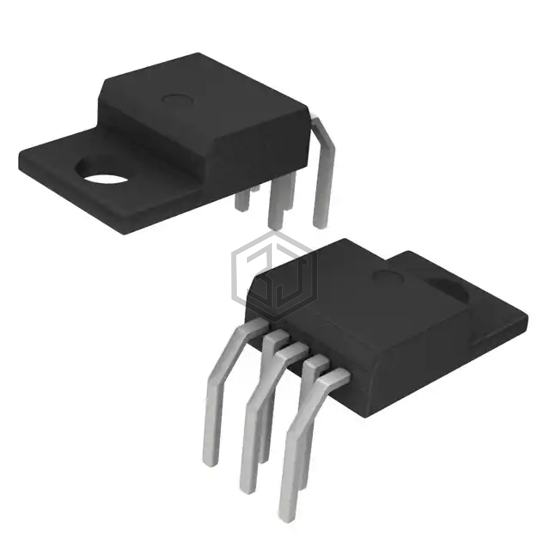

IC REG LIN 5V 300MA TO220-5
CS8120YTHA5 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LIN 5V 300MA TO220-5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-220-5 Formed Leads, current - supply (max) 15 mA.
In Stock: 5,323
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.5V @ 200mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 650 µA |
| Current - Supply (Max) | 15 mA |
| PSRR | 70dB (120Hz) |
| Control Features | Enable, Reset |
| Protection Features | Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 Formed Leads |
| Supplier Device Package | TO-220-5 Horizontal |
CS8120YTHA5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT1121IZ-5#TRPBF | Analog Devices Inc. | IC REG LINEAR 5V 150MA TO92-3 | 71% | View |
| LP2950CZ-5.0/LFT3 | Texas Instruments | IC REG LINEAR 5V 100MA TO92-3 | 64% | View |
| LP2950CZ-5.0/NOPB | Texas Instruments | IC REG LINEAR 5V 100MA TO92-3 | 64% | View |
| LP2950ACZ-5.0/LFT3 | Texas Instruments | IC REG LINEAR 5V 100MA TO92-3 | 64% | View |
| LP2950CZ-5.0/LFT1 | Texas Instruments | IC REG LINEAR 5V 100MA TO92-3 | 64% | View |
| LM2940T-10.0/NOPB | Texas Instruments | IC REG LINEAR 10V 1A TO220-3 | 52% | View |
Submit your RFQ for CS8120YTHA5 and get a quote within 24 hours.
