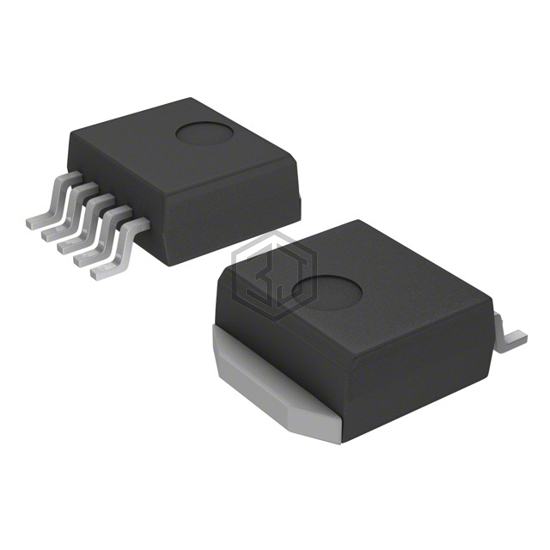

IC REG LINEAR 5V 300MA D2PAK-5
CS8120YDPR5 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 5V 300MA D2PAK-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - supply (max) 15 mA.
In Stock: 75,248
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.5V @ 200mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 650 µA |
| Current - Supply (Max) | 15 mA |
| PSRR | 70dB (120Hz) |
| Control Features | Enable, Reset |
| Protection Features | Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | D2PAK-5 |
CS8120YDPR5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MIC5239-5.0YMM | Microchip Technology | IC REG LINEAR 5V 500MA 8MSOP | 70% | View |
| AP2210N-5.0TRG1 | Diodes Incorporated | IC REG LINEAR 5V 300MA SOT23-3 | 66% | View |
| AP2210K-5.0TRG1 | Diodes Incorporated | IC REG LINEAR 5V 300MA SOT23-5 | 66% | View |
| MIC5239-3.0YMM-TR | Microchip Technology | IC REG LINEAR 3V 500MA 8MSOP | 55% | View |
| LP3876ES-5.0/NOPB | Texas Instruments | IC REG LIN 5V 3A DDPAK/TO263-5 | 54% | View |
| LM2940SX-10/NOPB | Texas Instruments | IC REG LIN 10V 1A DDPAK/TO263-3 | 52% | View |
Submit your RFQ for CS8120YDPR5 and get a quote within 24 hours.
