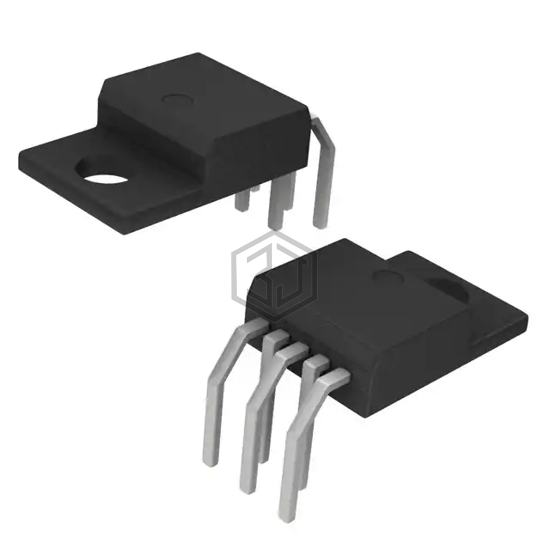

IC REG LIN 5V 100MA TO220-5
CS8101YTHA5 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LIN 5V 100MA TO220-5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-220-5 Formed Leads, current - supply (max) 20 mA.
In Stock: 1,908
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 140 µA |
| Current - Supply (Max) | 20 mA |
| PSRR | 75dB (120Hz) |
| Control Features | Enable, Reset |
| Protection Features | Over Temperature, Over Voltage, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 Formed Leads |
| Supplier Device Package | TO-220-5 Horizontal |
CS8101YTHA5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CS8101YTVA5G | onsemi | IC REG LIN 5V 100MA TO220-5 | 100% | View |
| CS8101YTHA5G | onsemi | IC REG LIN 5V 100MA TO220-5 | 100% | View |
| CS8101YT5 | onsemi | IC REG LINEAR 5V 100MA TO220-5 | 100% | View |
| LM2937ET-5.0/NOPB | Texas Instruments | IC REG LINEAR 5V 500MA TO220-3 | 68% | View |
| TS2937CZ33 C0G | Taiwan Semiconductor Corporation | IC REG LINEAR 3.3V 500MA TO220 | 61% | View |
| LM2937ET-8.0 | National Semiconductor | IC REG LINEAR LDO | 54% | View |
Submit your RFQ for CS8101YTHA5 and get a quote within 24 hours.
