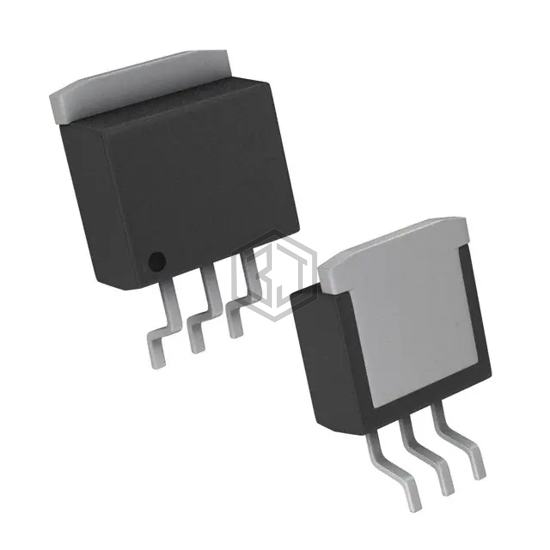

IC REG LINEAR POS ADJ 4A D2PAK-3
CS5204-1GDPR3 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR POS ADJ 4A D2PAK-3. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, package / case TO-263-4, D²Pak (3 Leads + Tab), TO-263AA, current - output 4A.
In Stock: 744
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 17V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 13V |
| Voltage Dropout (Max) | 1.2V @ 4A |
| Current - Output | 4A |
| Current - Quiescent (Iq) | 6 mA |
| Current - Supply (Max) | - |
| PSRR | 82dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
| Supplier Device Package | D2PAK-3 |
Submit your RFQ for CS5204-1GDPR3 and get a quote within 24 hours.
