MOSFET N-CH 30V 3.5A 5CPH

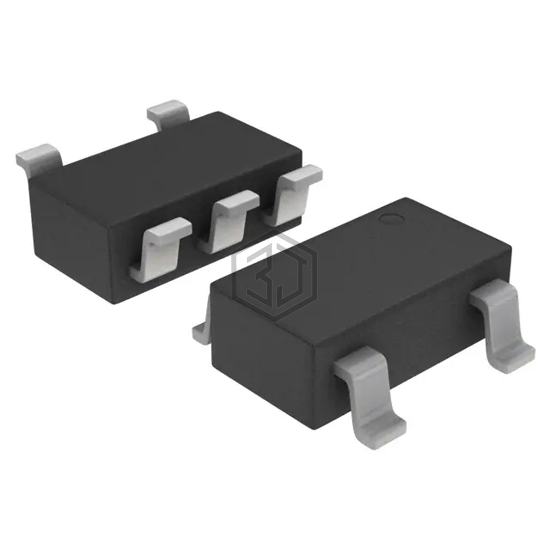

CPH5871-TL-W is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 3.5A 5CPH. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case SC-74A, SOT-753.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 52mOhm @ 2A, 4.5V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 4.7 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 430 pF @ 10 V |
| FET Feature | Schottky Diode (Isolated) |
| Power Dissipation (Max) | 900mW (Ta) |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-CPH |
| Package / Case | SC-74A, SOT-753 |
Submit your RFQ for CPH5871-TL-W and get a quote within 24 hours.
