TRANS NPN/PNP 40V/30V 0.7A 5CPH

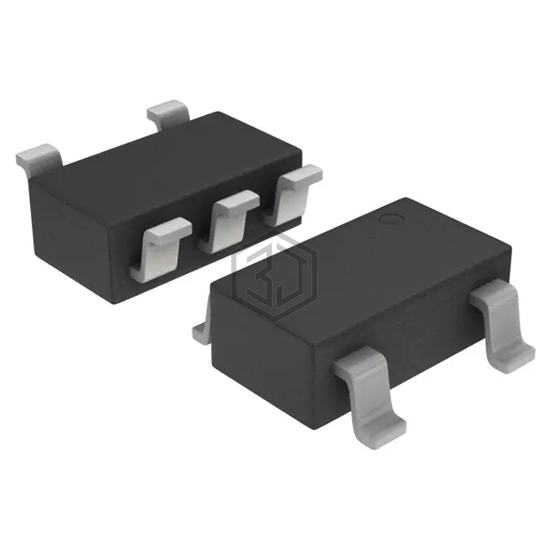

CPH5541-TL-E is a Transistors - Bipolar (BJT) - Arrays manufactured by onsemi. TRANS NPN/PNP 40V/30V 0.7A 5CPH. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SOT-23-5 Thin, TSOT-23-5, current - collector (ic) (max) 700mA.
In Stock: 9,555
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | NPN, PNP (Emitter Coupled) |
| Current - Collector (Ic) (Max) | 700mA |
| Voltage - Collector Emitter Breakdown (Max) | 40V, 30V |
| Vce Saturation (Max) @ Ib, Ic | 190mV @ 10mA, 200mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 50mA, 2V |
| Power - Max | 600mW |
| Frequency - Transition | 540MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | 5-CPH |
Submit your RFQ for CPH5541-TL-E and get a quote within 24 hours.
