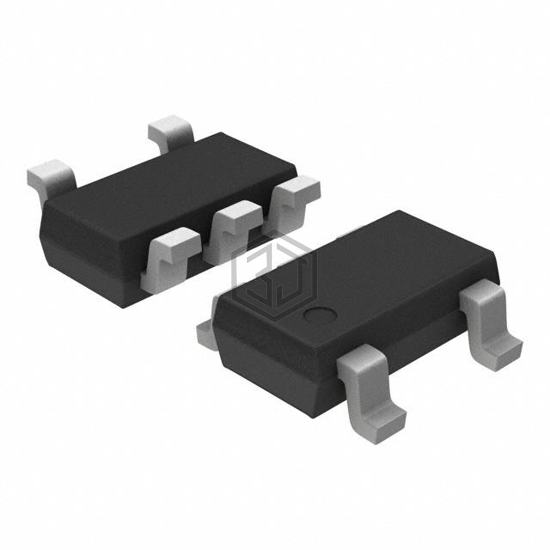

TRANS NPN/PNP 30V 1.5A 5CPH
CPH5506-TL-E is a Transistors - Bipolar (BJT) - Arrays manufactured by onsemi. TRANS NPN/PNP 30V 1.5A 5CPH. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SOT-23-5 Thin, TSOT-23-5, current - collector (ic) (max) 1.5A.
In Stock: 2,394
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | NPN, PNP (Emitter Coupled) |
| Current - Collector (Ic) (Max) | 1.5A |
| Voltage - Collector Emitter Breakdown (Max) | 30V |
| Vce Saturation (Max) @ Ib, Ic | 225mV @ 15mA, 750mA, 375mV @ 15mA, 750mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 100mA, 2V |
| Power - Max | 1.2W |
| Frequency - Transition | 500MHz, 450MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | 5-CPH |
Submit your RFQ for CPH5506-TL-E and get a quote within 24 hours.
