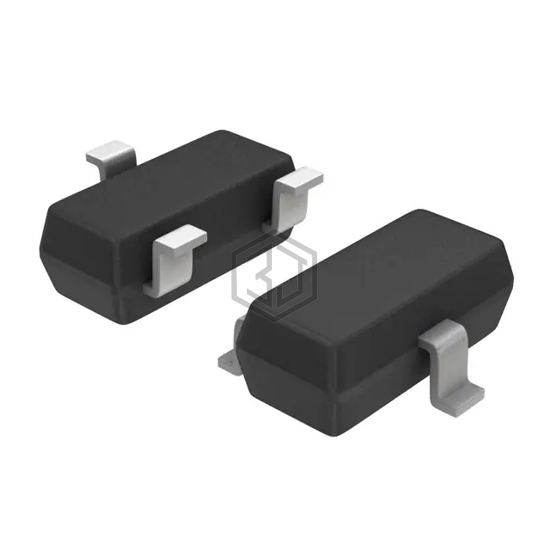

MOSFET P-CH 30V 1.6A 3CPH
CPH3360-TL-H is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 30V 1.6A 3CPH. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.
In Stock: 204,675
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 1.6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 303mOhm @ 800mA, 10V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 2.2 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 82 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 900mW (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 3-CPH |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
Submit your RFQ for CPH3360-TL-H and get a quote within 24 hours.
