FILTER LC(PI) 12NH/16.5PF SMD

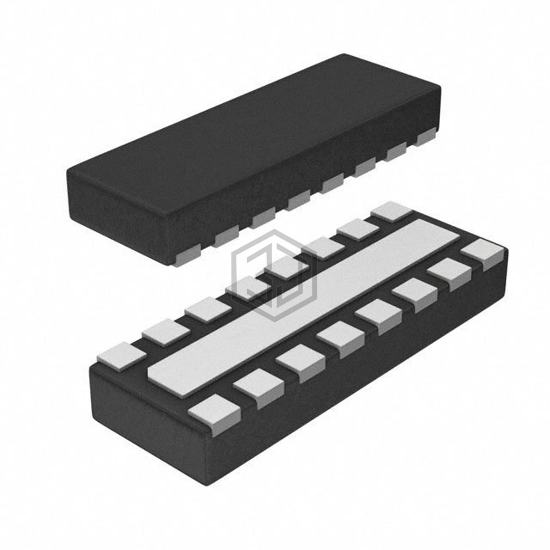

CM1690-08DE is a EMI/RFI Filters (LC, RC Networks) manufactured by onsemi. FILTER LC(PI) 12NH/16.5PF SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-UFDFN Exposed Pad, current 30 mA.
In Stock: 547,610
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Low Pass |
| Filter Order | 3rd |
| Technology | LC (Pi) |
| Number of Channels | 8 |
| Center / Cutoff Frequency | - |
| Attenuation Value | -35dB @ 1GHz ~ 3GHz |
| Resistance - Channel (Ohms) | 8 |
| Current | 30 mA |
| Values | L = 12nH, C = 16.5pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFDFN Exposed Pad |
| Size / Dimension | 0.130" L x 0.053" W (3.30mm x 1.35mm) |
| Height | 0.022" (0.55mm) |
Submit your RFQ for CM1690-08DE and get a quote within 24 hours.
