FILTER LC(PI) 3NH/100PF ESD SMD

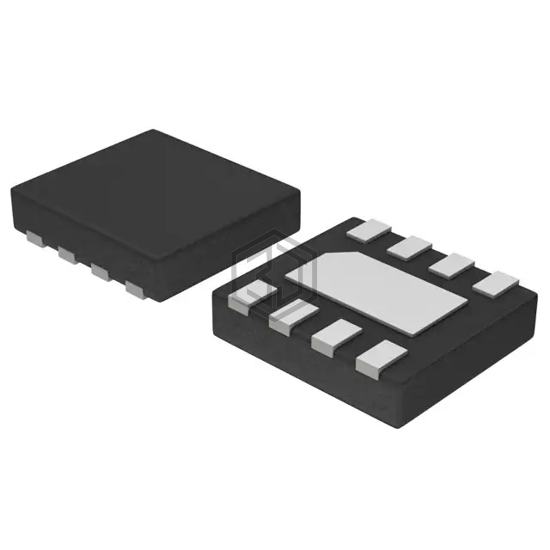

CM1683-02DE is a EMI/RFI Filters (LC, RC Networks) manufactured by onsemi. FILTER LC(PI) 3NH/100PF ESD SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-UDFN Exposed Pad, current 30 mA.
In Stock: 89,770
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Low Pass |
| Filter Order | 3rd |
| Technology | LC (Pi) |
| Number of Channels | 2 |
| Center / Cutoff Frequency | 31MHz (Cutoff) |
| Attenuation Value | 40dB @ 1GHz |
| Resistance - Channel (Ohms) | 0.75 |
| Current | 30 mA |
| Values | L = 3nH, C = 100pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-UDFN Exposed Pad |
| Size / Dimension | 0.079" L x 0.079" W (2.00mm x 2.00mm) |
| Height | 0.026" (0.65mm) |
Submit your RFQ for CM1683-02DE and get a quote within 24 hours.
