FILTER RC(PI) 100 OHM/8.5PF SMD

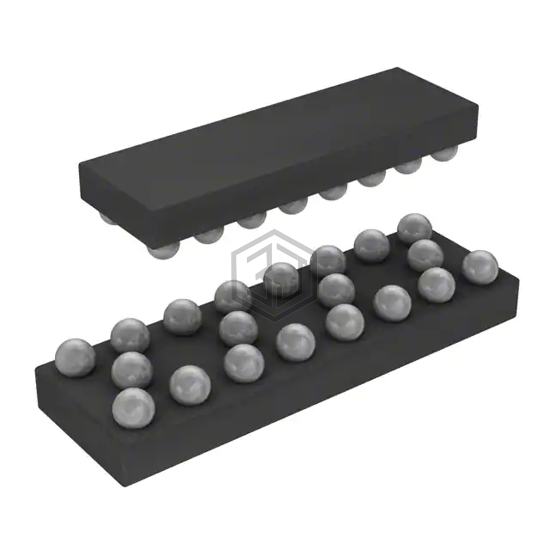

CM1443-08CP is a EMI/RFI Filters (LC, RC Networks) manufactured by onsemi. FILTER RC(PI) 100 OHM/8.5PF SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 20-WFBGA, WLCSP, size / dimension 0.124" L x 0.041" W (3.16mm x 1.05mm).
In Stock: 24,500
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 8 |
| Center / Cutoff Frequency | 220MHz (Cutoff) |
| Attenuation Value | 30dB @ 800MHz ~ 6GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | - |
| Values | R = 100Ohms, C = 8.5pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFBGA, WLCSP |
| Size / Dimension | 0.124" L x 0.041" W (3.16mm x 1.05mm) |
| Height | 0.027" (0.69mm) |
