FILTER LC(PI) 3NH/117PF ESD SMD

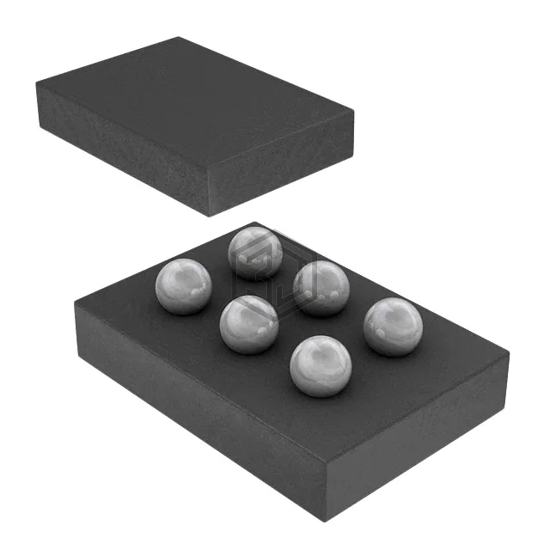

CM1418-02CP is a EMI/RFI Filters (LC, RC Networks) manufactured by onsemi. FILTER LC(PI) 3NH/117PF ESD SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 6-WFBGA, WLCSP, current 500 mA.
In Stock: 45,500
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Low Pass |
| Filter Order | 3rd |
| Technology | LC (Pi) |
| Number of Channels | 2 |
| Center / Cutoff Frequency | 22MHz (Cutoff) |
| Attenuation Value | 35dB @ 1GHz |
| Resistance - Channel (Ohms) | 0.28 |
| Current | 500 mA |
| Values | L = 3nH, C = 117pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFBGA, WLCSP |
| Size / Dimension | 0.067" L x 0.048" W (1.72mm x 1.22mm) |
| Height | 0.028" (0.70mm) |
Submit your RFQ for CM1418-02CP and get a quote within 24 hours.
