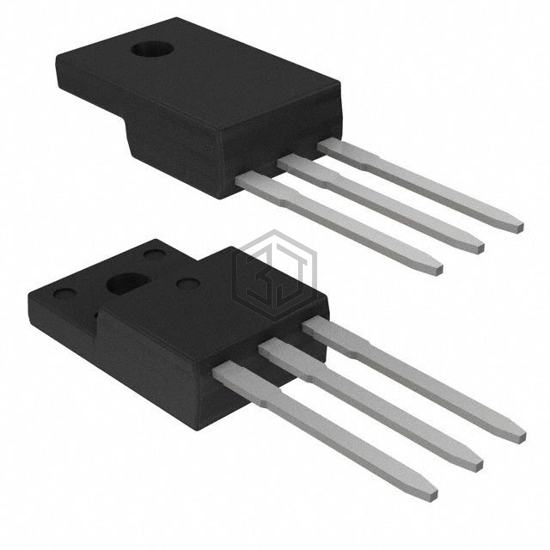

MOSFET N-CH 800V 4.3A TO220F-3FS
BFL4004-1E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 800V 4.3A TO220F-3FS. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack.
In Stock: 36,832
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 4.3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.5Ohm @ 3.25A, 10V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 36 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 710 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta), 36W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220F-3FS |
| Package / Case | TO-220-3 Full Pack |
Submit your RFQ for BFL4004-1E and get a quote within 24 hours.
