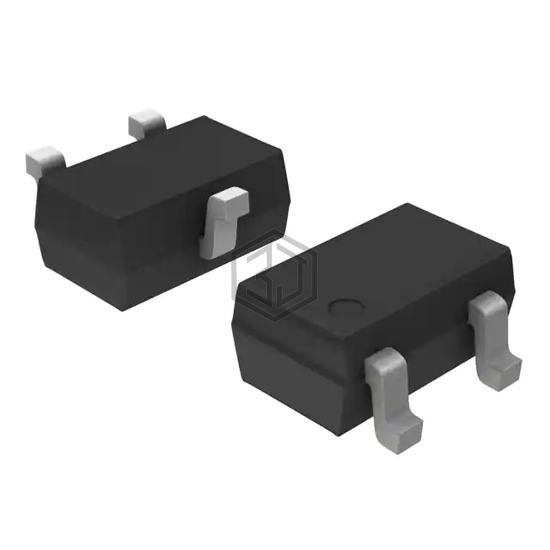

BAW56WT1
DIODE SWITCH DUAL CA 70V SOT323
BAW56WT1 is a Diodes - Rectifiers - Arrays manufactured by onsemi. DIODE SWITCH DUAL CA 70V SOT323. Key specifications: mounting type Surface Mount, package / case SC-70, SOT-323.
In Stock: 289,686
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Configuration | 1 Pair Common Anode |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 70 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 6 ns |
| Current - Reverse Leakage @ Vr | 2.5 µA @ 70 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 (SOT323) |
Frequently Asked Questions
BAW56WT1 is a Diodes - Rectifiers - Arrays manufactured by onsemi. DIODE SWITCH DUAL CA 70V SOT323
The mounting type of BAW56WT1 is Surface Mount.
The package type of BAW56WT1 is SC-70, SOT-323.
Yes, BAW56WT1 is listed as Obsolete. Consider requesting a quote for alternative parts.
