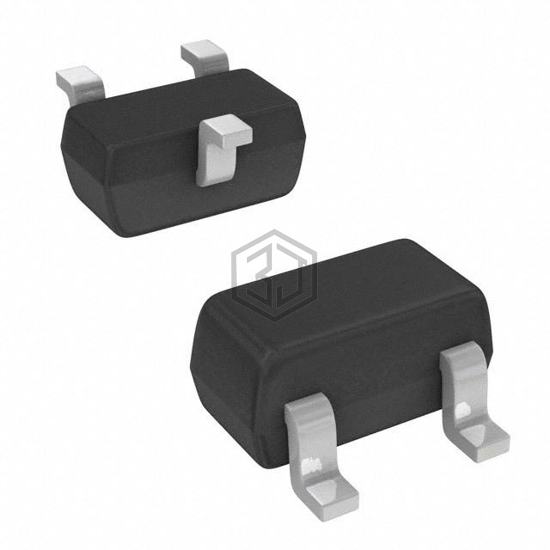

BAV70T
DIODE FAST SW 85V 75MA SOT523
BAV70T is a Diodes - Rectifiers - Arrays manufactured by onsemi. DIODE FAST SW 85V 75MA SOT523. Key specifications: mounting type Surface Mount, package / case SOT-523.
In Stock: 4
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 85 V |
| Current - Average Rectified (Io) (per Diode) | 75mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 50 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 75 V |
| Operating Temperature - Junction | 125°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-523 |
| Supplier Device Package | SOT-523 |
Frequently Asked Questions
BAV70T is a Diodes - Rectifiers - Arrays manufactured by onsemi. DIODE FAST SW 85V 75MA SOT523
The mounting type of BAV70T is Surface Mount.
The package type of BAV70T is SOT-523.
Yes, BAV70T is listed as Obsolete. Consider requesting a quote for alternative parts.
