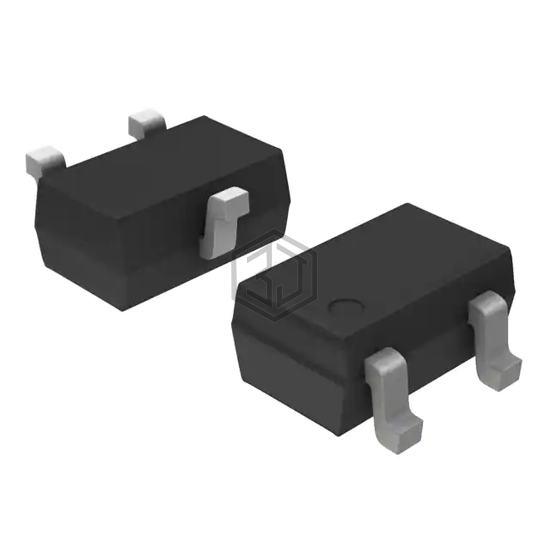

BAT54CWT1
DIODE ARRAY SCHOTTKY 30V SOT323
BAT54CWT1 is a Diodes - Rectifiers - Arrays manufactured by onsemi. DIODE ARRAY SCHOTTKY 30V SOT323. Key specifications: mounting type Surface Mount, package / case SC-70, SOT-323.
In Stock: 13,867
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 (SOT323) |
Frequently Asked Questions
BAT54CWT1 is a Diodes - Rectifiers - Arrays manufactured by onsemi. DIODE ARRAY SCHOTTKY 30V SOT323
The mounting type of BAT54CWT1 is Surface Mount.
The package type of BAT54CWT1 is SC-70, SOT-323.
Yes, BAT54CWT1 is listed as Obsolete. Consider requesting a quote for alternative parts.
