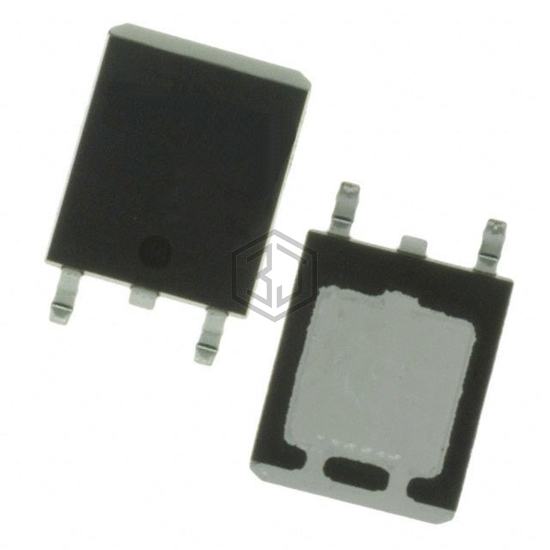

MOSFET N-CH 600V 5A ATPAK
ATP602-TL-H is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 600V 5A ATPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case ATPAK (2 leads+tab).
In Stock: 66,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.7Ohm @ 2.5A, 10V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 13.6 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 350 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 70W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | ATPAK |
| Package / Case | ATPAK (2 leads+tab) |
Submit your RFQ for ATP602-TL-H and get a quote within 24 hours.
