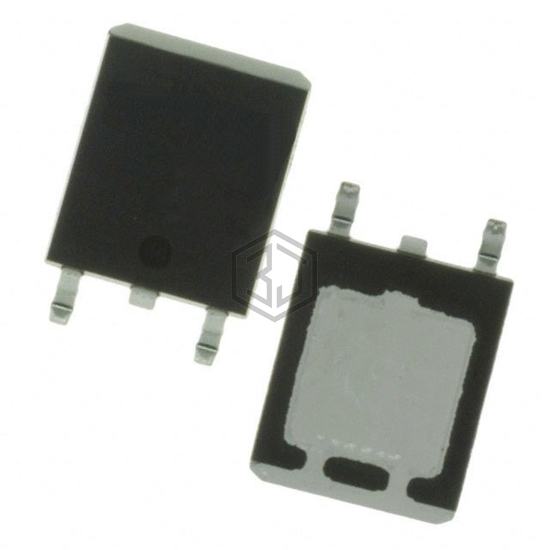

MOSFET N-CH 40V 65A ATPAK
ATP207-TL-H is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 65A ATPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case ATPAK (2 leads+tab).
In Stock: 2,476
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 65A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 9.1mOhm @ 33A, 10V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 54 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2710 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 50W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | ATPAK |
| Package / Case | ATPAK (2 leads+tab) |
Submit your RFQ for ATP207-TL-H and get a quote within 24 hours.
