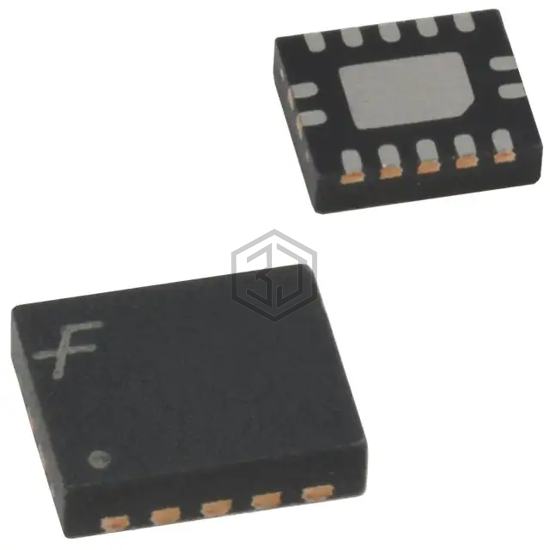

IC GATE NAND 4CH 2-INP 14DQFN
74VCX132BQX is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NAND 4CH 2-INP 14DQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.4V ~ 3.6V, package / case 14-VFQFN Exposed Pad.
In Stock: 7,836
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.4V ~ 3.6V |
| Current - Quiescent (Max) | 20 µA |
| Current - Output High, Low | 24mA, 24mA |
| Logic Level - Low | 0.2V ~ 0.8V |
| Logic Level - High | 1.2V ~ 2.2V |
| Max Propagation Delay @ V, Max CL | 3.3ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-DQFN (3x2.5) |
| Package / Case | 14-VFQFN Exposed Pad |
74VCX132BQX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LVC00AS14-13 | Diodes Incorporated | IC GATE NAND 4CH 2-INP 14SO | 81% | View |
| SN74LVC00AQPWRG4Q1 | Texas Instruments | IC GATE NAND 4CH 2-INP 14TSSOP | 78% | View |
| 74LCX00SJX | Fairchild Semiconductor | NAND GATE, LVC/LCX/Z SERIES, 4 F | 76% | View |
| SN74LVC00ARGYR | Texas Instruments | IC GATE NAND 4CH 2-INP 14VQFN | 76% | View |
| NC7SV00L6X | onsemi | IC GATE NAND 1CH 2-INP 6MICROPAK | 63% | View |
| SN74AC10D | Texas Instruments | IC GATE NAND 3CH 3-INP 14SOIC | 59% | View |
Submit your RFQ for 74VCX132BQX and get a quote within 24 hours.
