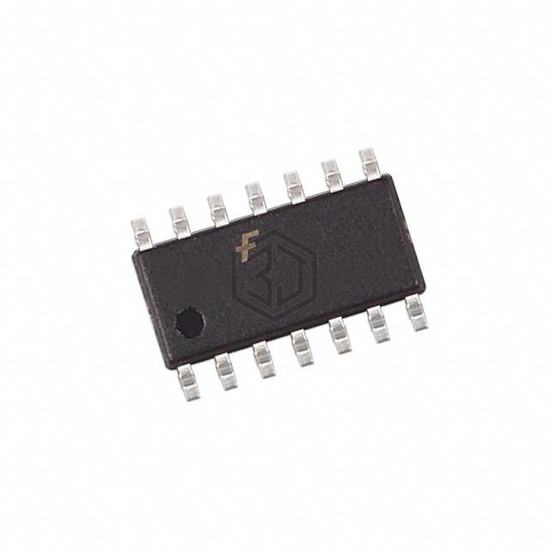

IC GATE NAND 4CH 2-INP 14SOP
74LVX00SJX is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NAND 4CH 2-INP 14SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 3.6V, package / case 14-SOIC (0.209", 5.30mm Width).
In Stock: 9,327
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 3.6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 4mA, 4mA |
| Logic Level - Low | 0.5V ~ 0.8V |
| Logic Level - High | 1.5V ~ 2.4V |
| Max Propagation Delay @ V, Max CL | 9.7ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOP |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
74LVX00SJX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74HCT00PW | Texas Instruments | IC GATE NAND 4CH 2-INP 14TSSOP | 81% | View |
| SN74HCT00D | Texas Instruments | IC GATE NAND 4CH 2-INP 14SOIC | 81% | View |
| 74HCT00D/C118 | NXP USA Inc. | IC GATE NAND 4CH 2-INP 14SO | 77% | View |
| CD74HCT132M128 | Harris Corporation | IC GATE NAND 4CH 2-INP 14SOIC | 74% | View |
| 74HCT2G00DP,125 | Nexperia USA Inc. | IC GATE NAND 2CH 2-INP 8TSSOP | 73% | View |
| 74HCT10D/S400118 | NXP USA Inc. | IC GATE NAND 3CH 3-INP 14SO | 72% | View |
Submit your RFQ for 74LVX00SJX and get a quote within 24 hours.
