IC GATE XOR 4CH 2-INP 14SOP

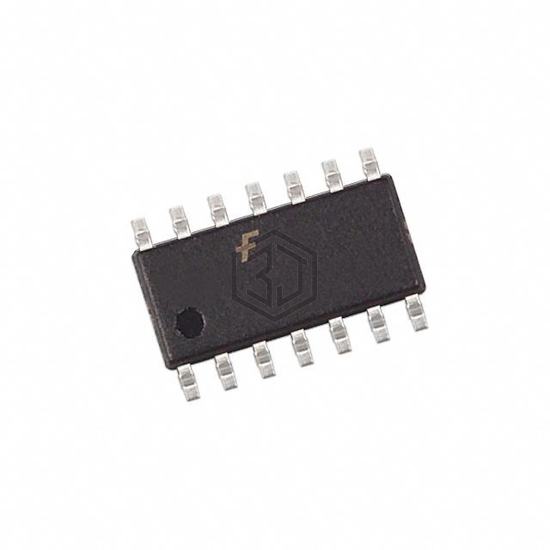

74LCX86SJX is a Logic - Gates and Inverters manufactured by onsemi. IC GATE XOR 4CH 2-INP 14SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 3.6V, package / case 14-SOIC (0.209", 5.30mm Width).
In Stock: 8,078
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 3.6V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 24mA, 24mA |
| Logic Level - Low | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 6.5ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOP |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
74LCX86SJX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC86APWR | Texas Instruments | IC GATE XOR 4CH 2-INP 14TSSOP | 83% | View |
| SN74LVC86ADBR | Texas Instruments | IC GATE XOR 4CH 2-INP 14SSOP | 83% | View |
| MC74ACT86DR2 | onsemi | IC GATE XOR 4CH 2-INP 14-SOIC | 82% | View |
| SN74ACT86DR | Texas Instruments | IC GATE XOR 4CH 2-INP 14SOIC | 82% | View |
| SN74ACT86DBR | Texas Instruments | IC GATE XOR 4CH 2-INP 14SSOP | 82% | View |
| MC74ACT86DR2G | onsemi | IC GATE XOR 4CH 2-INP 14SOIC | 82% | View |
Submit your RFQ for 74LCX86SJX and get a quote within 24 hours.
