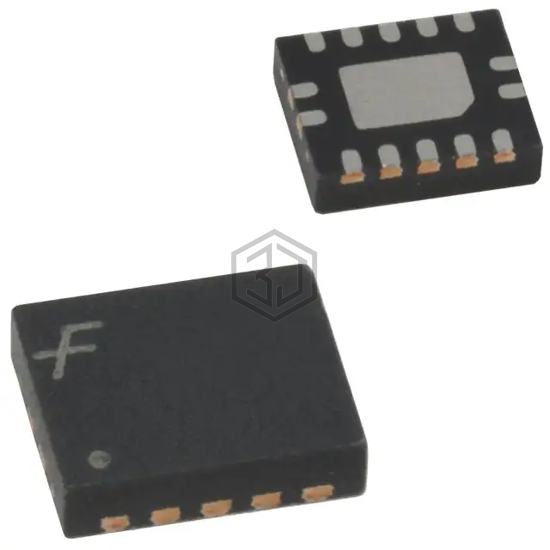

IC INV SCHMITT 6CH 1-IN 14DQFN
74LCX14BQX is a Logic - Gates and Inverters manufactured by onsemi. IC INV SCHMITT 6CH 1-IN 14DQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 3.6V, package / case 14-VFQFN Exposed Pad.
In Stock: 2,825
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 3.6V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 24mA, 24mA |
| Logic Level - Low | 0.4V ~ 0.6V |
| Logic Level - High | 1.7V ~ 2.2V |
| Max Propagation Delay @ V, Max CL | 6.5ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-DQFN (3x2.5) |
| Package / Case | 14-VFQFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC74LCX14DR2G | onsemi | IC INV SCHMITT 6CH 1-IN 14SOIC | 100% | View |
| MC74LCX04DTR2G | onsemi | IC INVERTER 6CH 1-INP 14TSSOP | 93% | View |
| 74AC11004DWR | Texas Instruments | IC INVERTER 6CH 1-INP 20SOIC | 85% | View |
| SN74ALVC04D | Texas Instruments | IC INVERTER 6CH 1-INP 14SOIC | 82% | View |
| SN74AC14PWR | Texas Instruments | IC INVERTER 6CH 1-INP 14TSSOP | 80% | View |
| SN74LVC04APWT | Texas Instruments | IC INVERTER 6CH 1-INP 14TSSOP | 79% | View |
Submit your RFQ for 74LCX14BQX and get a quote within 24 hours.
