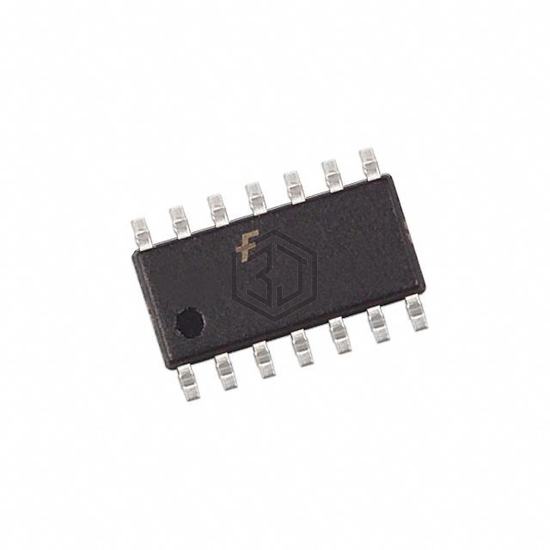

IC INVERT SCHMITT 6CH 1-IN 14SOP
74F14SJ is a Logic - Gates and Inverters manufactured by onsemi. IC INVERT SCHMITT 6CH 1-IN 14SOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, package / case 14-SOIC (0.209", 5.30mm Width).
In Stock: 4,696
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - |
| Current - Output High, Low | 1mA, 20mA |
| Logic Level - Low | 1.1V |
| Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 10.5ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOP |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
74F14SJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DM74S04M | Fairchild Semiconductor | INVERTER, S SERIES, 6-FUNC, TTL | 93% | View |
| DM74S04MX | Fairchild Semiconductor | INVERTER, S SERIES, 6-FUNC, TTL | 93% | View |
| SN74F04DR | Texas Instruments | IC INVERTER 6CH 1-INP 14SOIC | 85% | View |
| SN74F04D | Texas Instruments | IC INVERTER 6CH 1-INP 14SOIC | 85% | View |
| SN74F04NSR | Texas Instruments | IC INVERTER 6CH 1-INP 14SOP | 85% | View |
| SN74S04D | Texas Instruments | IC INVERTER 6CH 1-INP 14SOIC | 85% | View |
Submit your RFQ for 74F14SJ and get a quote within 24 hours.
