IC GATE NAND 4CH 2IN 14SOP

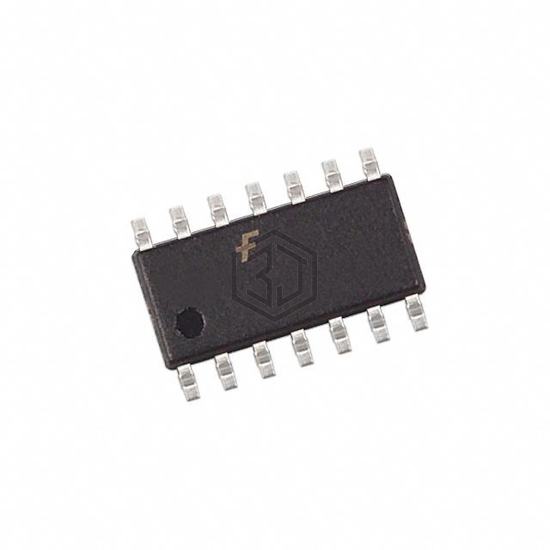

74F132SJ is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NAND 4CH 2IN 14SOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, package / case 14-SOIC (0.209", 5.30mm Width).
In Stock: 1,640
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - |
| Current - Output High, Low | 1mA, 20mA |
| Logic Level - Low | 1.1V |
| Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 12.5ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOP |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
74F132SJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| N74F132D,602 | NXP USA Inc. | IC GATE NAND SCHMIT 4CH 2IN 14SO | 91% | View |
| I74F00D,602 | NXP USA Inc. | IC GATE NAND 4CH 2-INP 14SO | 82% | View |
| SN74S00D | Texas Instruments | IC GATE NAND 4CH 2-INP 14SOIC | 82% | View |
| SN74F00DRG4 | Texas Instruments | IC GATE NAND 4CH 2-INP 14SOIC | 82% | View |
| SN74F10NSR | Texas Instruments | IC GATE NAND 3CH 3-INP 14SOP | 77% | View |
| SN74F30NSR | Texas Instruments | IC GATE NAND 1CH 8-INP 14SOP | 63% | View |
Submit your RFQ for 74F132SJ and get a quote within 24 hours.
