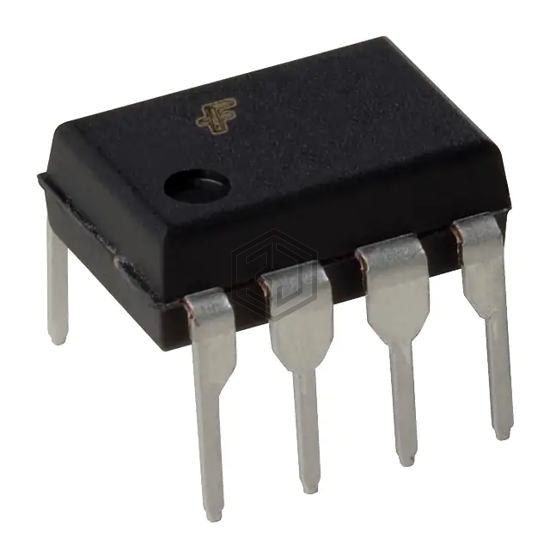

OPTOISO 5KV DARL W/BASE 8DIP
6N138M is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 5KV DARL W/BASE 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.3V, package / case 8-DIP (0.300", 7.62mm).
In Stock: 1,621
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 300% @ 1.6mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 1µs, 7.3µs |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Darlington with Base |
| Voltage - Output (Max) | 7V |
| Current - Output / Channel | 60mA |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Current - DC Forward (If) (Max) | 20 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
Submit your RFQ for 6N138M and get a quote within 24 hours.
